Aluminum Swingarm for Harley Davidson FXR 82-00 comes with Speherical Bearings and Axle

Description

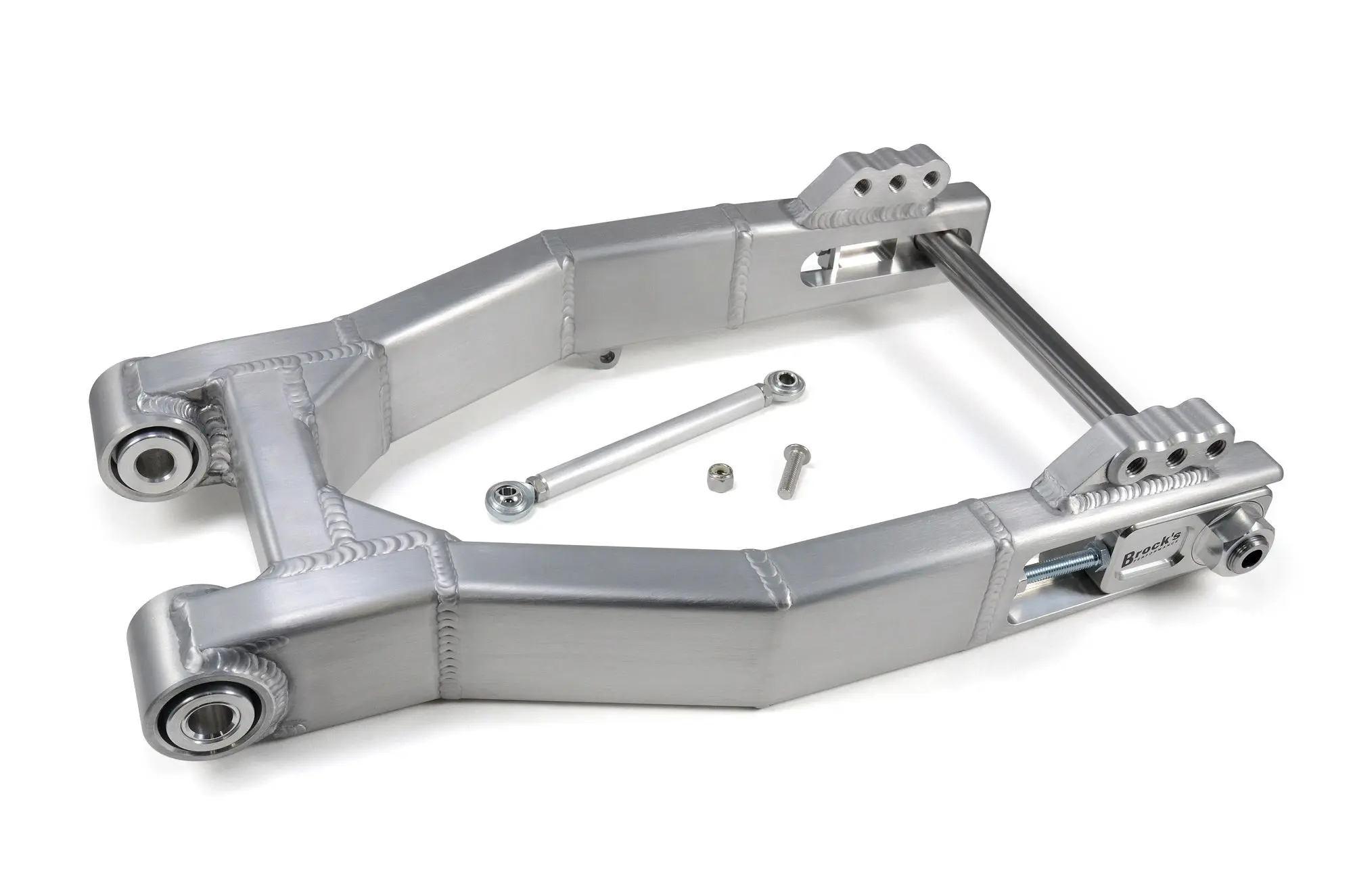

Handcrafted 6061-T6 aluminum extended swingarm Proprietary custom extrusion made exclusively for Brock’s Performance Extends wheelbase from stock to 3 inches over 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”) Designed for use in high-power, high-torque applications Includes centerless ground 4130 Chromoly axle (choose from 3/4”, 25mm, 1”, or 28mm axles) 25mm 1″ or 28mm suggested for high HP/TQ applications when possible Reversible billet aluminum axle adjusters for easy wheel adjustments Includes adjustable brake bar for undermount (aftermarket) brake caliper PTFE® lined spherical bearings from  Worldwide Bearings  preinstalled Includes bushings to use the OEM pivot shaft (choose from 5/8” or 3/4” bushing sets) Interior swingarm width measures 10 1/4” at the axle The total weight of swingarm, hardware, and axle is 14.32 lb. (6.50 kg) Designed, machined, and assembled in the USA Burnished raw aluminum or black finish Please note: When using the 3/4″ axle in high power applications, we suggest a wheel configuration which utilizes a double row bearing (or outboard bearing) on the sprocket side. Manufactured by Brocks Performance Attention: When spacing FXR rear wheel,  the overall width   including spacers, brake hanger, etc. Must be: 10.250 in +.020in/-.000in / (260.35mm +.50mm/-.00mm) Overall hub width is critical for proper operation/handling, product longevity, and rider safety. Brock’s Performance manufacturer  will not warranty  any damaged swingarm found not to be in compliance with these spacing guidelines.
