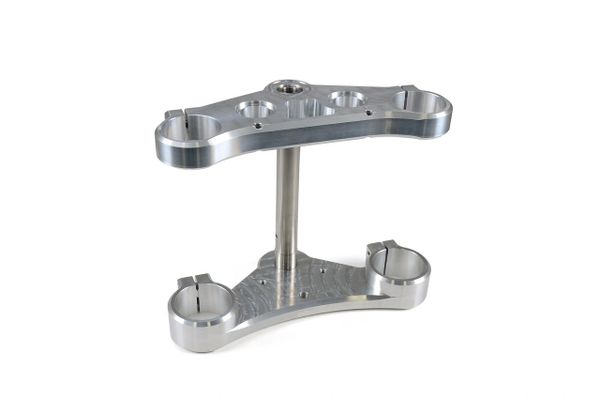

VTwin Triple Tree 50/54mm (2.375" Offset) 207mm spread

*** READ COMPLETE DESCRIPTION BEFORE PLACING ORDER ***

Known Fitment Applications:

• Harley-Davidson® FXR (87-94 AN 99-00)
• Harley-Davidson® Dyna (90-06)
• Harley-Davidson® Sportster (87-03)

All remaining years of FXR, Dyna, and Sportster will accept the clamp with small modifications. The clamp will also fit custom applications utilizing a 1” DIA Harley-Davidson® steering stem. This is a bolt on application for any frame with the fork stop on the front of the neck; all other frames will require a fabricated fork stop.

• Direct bolt-on triple clamp for popular Harley-Davidson® models

• Allows use of popular OEM upside-down (inverted) sportbike forks
• Reversible lower clamp for maximum fork height adjustability

• Lower clamp is tapped for fork stops and a clearance hole for headlight mounting
• Upper clamp is tapped for headlight eyebrow
• Accepts handlebars with a 3.5" center-to-center spacing
• Threaded steering stem and jam nut to allow proper setting of bearing preload
• Steering stem is threaded 5/8"-18 for steering stem bolt
• Two (2) 5/16”-18 threaded holes for fork stops
• One (1) 3/8” clearance hole for headlight mounting
• Uses OEM H-D® (1" ID) bearings and seals (not included)
• Stock Dyna offset of 2.375" for 18"+ wheels sizes
• 207mm fork spread center-to-center (e.g. 2001-2006 GSX-R1000)

• CNC machined 6061-T6 billet aluminum upper and lower clamps
• 300 series stainless steering stem
• All stainless steel hardware
• Laser engraved logo
• Natural finish
• Weighs only 5.8 lb.
• Designed, machined and assembled in the USA

  54mm fork assembly suggestions:

  • GSX-R1000 (01-06)

  (This is not a complete listing of options, these are suggestions based on known information)
